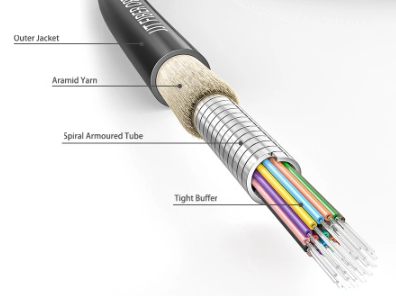

The armored fiber optic cable, also known as armored optical cable or armored fiber cable, exhibits several distinctive features in its structural design. These characteristics jointly contribute to the cable's exceptional protection and transmission capabilities. Here is a more detailed examination of the cable's unique structural design:www.adsscable.cn

1. Outer Jacket Design

The outermost layer of the armored fiber optic cable is typically composed of a protective jacket made from durable materials such as polyethylene. This jacket serves as the primary defense against external factors, shielding the cable from solvents, abrasion, and other potential sources of damage. Its robust construction ensures that the cable can withstand harsh environments and maintain its integrity over long periods.

2. Metal Armor Layer

Sandwiched between the outer jacket and the inner sheathing lies the metal armor layer. This layer is crafted from materials that are difficult to cut, chew, or burn, such as steel tape or aluminum foil. Its primary function is to provide a robust barrier against animal bites, moisture infiltration, and other potential hazards. Additionally, the metal armor layer significantly enhances the tensile strength of the cable, protecting it from stretching or breaking during installation or in use.

3. Jacket Stripping Ribbon

Integrated within the armor layer and inner sheathing is a jacket stripping ribbon. This design feature facilitates the easy removal of the protective jacket during installation, allowing for seamless splicing and termination of the cable. The stripping ribbon simplifies the installation process, reducing the time and effort required for cable preparation.

4. Inner Sheathing and Cable Bundlewww.adsscable.cn

The inner sheathing is a protective and flame-resistant material that supports the cable bundle. This bundle encases the optical fibers, strengthening elements, and other components, providing them with a secure and stable environment. The central strengthening element within the bundle serves as the main support for the entire cable, ensuring its structural integrity and stability.

5. Fillers and Compounds

To maintain the structural compactness and stability of the armored fiber optic cable, fillers and compounds are used to occupy any interstitial spaces within the cable. These materials, such as flame retardants and waterproof gels, not only enhance the cable's structural rigidity but also impart additional protective properties. The flame retardants reduce the risk of fire propagation, while the waterproof gels prevent moisture ingress, ensuring reliable performance in wet or damp environments.

Furthermore, armored fiber optic cables are designed to cater to specific application scenarios. Indoor armored cables, for instance, often feature single or double layers of armor to meet the unique demands of indoor wiring. These designs prioritize ease of installation and compatibility with indoor environments, ensuring seamless integration into building infrastructure.

In summary, the armored fiber optic cable's structural design incorporates numerous unique features that jointly contribute to its superior protection, tensile strength, installation convenience, structural stability, and adaptability to various application environments. These design characteristics enable the cable to deliver exceptional performance in a wide range of complex and challenging wiring scenarios.
