Fiber Cable Patch Cord: Understanding Its Types and Applications

Exploring Types, Applications, and Benefits of Fiber Optic Patch Cords

Fiber cable patch cords, also known as fiber optic patch cables or fiber connectors, are essential components in optical communication systems. They enable the connection of optical devices, such as optical transceivers, switches, and routers, to fiber optic cables. This article aims to provide a comprehensive guide to fiber cable patch cords, including their types, applications, and benefits.

Types of Fiber Cable Patch Cords

1. Single-Mode and Multi-Mode Patch Cords

• Single-Mode Patch Cords: Typically indicated by yellow color, single-mode patch cords have a smaller core diameter (8μm to 10μm) and are capable of transmitting light over long distances, up to 10 kilometers. They are ideal for long-haul and high-speed applications.

  www.adsscable.cn

• Multi-Mode Patch Cords: Often indicated by orange or gray color, multi-mode patch cords have a larger core diameter (50μm to 65μm) and are suitable for shorter distances, typically up to 300 meters or 500 meters depending on the laser source. They are commonly used in local area networks (LANs).

2. Connector Types

Fiber cable patch cords come with various connector types, each designed for specific applications and environments. The most common connector types include:

• FC Connector: Known for its metal housing and threaded coupling, the FC connector provides a secure and stable connection. It is often used in storage area networks (SANs).

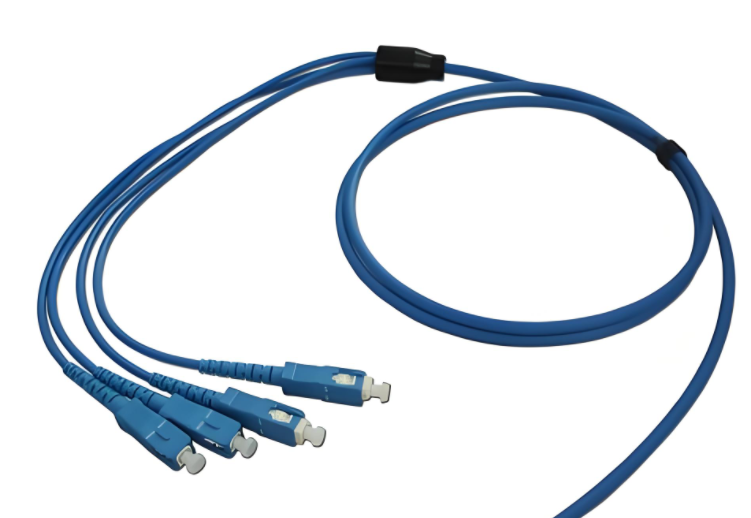

• SC Connector: Featuring a plastic housing and push-pull coupling, the SC connector is easy to install and remove. It is widely used in telecommunications and data centers.

• ST Connector: With a metal housing and bayonet coupling, the ST connector is robust and suitable for high-vibration environments. It is commonly found in fiber distribution frames.

• LC Connector: The LC connector, which stands for Lucent Connector, is similar to the SC connector but smaller in size. It is ideal for high-density applications and is often used in networking equipment.

Additionally, MPO (Multi-fiber Push-On) connectors are used for high-density fiber optic cabling, particularly in data centers supporting high-speed Ethernet applications such as 40G and 100G.

3. Fiber Grades for Multi-Mode Patch Cordswww.adsscable.cn

Multi-mode fiber patch cords are classified into different grades based on their optical performance, including OM1, OM2, OM3, OM4, and OM5.

• OM1 and OM2: These grades support shorter distances for 10 Gb Ethernet and are commonly used in 1 Gb Ethernet applications.

• OM3 and OM4: Optimized for laser-based equipment, OM3 and OM4 grades support longer distances for 10 Gb Ethernet and are often used in data center environments.

• OM5: The latest grade, OM5, offers enhanced bandwidth and supports wavelength division multiplexing (WDM), making it ideal for future high-speed applications such as 200G and 400G Ethernet.

Applications of Fiber Cable Patch Cords

Fiber cable patch cords are versatile and find applications in various industries and environments, including:www.adsscable.cn

• Telecommunications: Fiber optic patch cords are crucial in telecommunications networks, enabling high-speed data transmission over long distances.

• Data Centers: In data centers, fiber cable patch cords are used to connect servers, storage devices, and networking equipment, supporting high-density cabling and high-speed Ethernet applications.

• CATV Networks: Fiber optic technology is increasingly being adopted in cable television networks to provide higher bandwidth and better picture quality.

• Instrumentation: In industrial settings, fiber cable patch cords are used to connect sensors, actuators, and control systems, ensuring reliable and high-speed communication.

Benefits of Fiber Cable Patch Cords

• High Bandwidth: Fiber cable patch cords offer significantly higher bandwidth than traditional copper cables, supporting high-speed data transmission.

• Long Distance: Single-mode patch cords can transmit light over long distances without significant signal loss.

• Immunity to Interference: Fiber optic cables are immune to electromagnetic interference, ensuring reliable communication in noisy environments.

• Smaller Size and Lighter Weight: Fiber cable patch cords are smaller and lighter than copper cables, making them easier to install and manage.

Conclusion

Fiber cable patch cords are essential components in modern optical communication systems. Understanding their types, applications, and benefits is crucial for designing and maintaining efficient and reliable communication networks. Whether you are working in telecommunications, data centers, CATV networks, or instrumentation, fiber cable patch cords play a vital role in ensuring high-speed and reliable communication.
