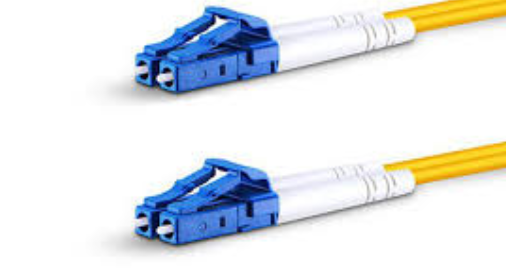

In the realm of fiber optic communication, choosing the right connector is crucial for ensuring efficient and reliable data transmission. Among the various types of fiber connectors, LC to LC fiber connectors stand out for their compact size, high density, and excellent performance. In this article, we delve into the specifications of LC to LC fiber connectors, providing a comprehensive guide to help you make an informed selection that perfectly meets your requirements.

www.adsscable.cn

Core and Cladding Diameters

www.adsscable.cn

One of the fundamental specifications to consider is the core and cladding diameters of the LC to LC fiber connector. The core diameter determines the amount of light that can be transmitted through the fiber, while the cladding diameter surrounds the core and provides structural support. Standard single-mode LC to LC connectors typically have a core diameter of 9 microns and a cladding diameter of 125 microns. For multimode connectors, the core diameter can vary from 50 to 62.5 microns, with a cladding diameter of 125 microns.

Insertion Loss and Return Loss

Insertion loss refers to the attenuation of optical power as it passes through the connector, while return loss measures the amount of light reflected back into the source due to imperfect connections. Low insertion loss and high return loss are desirable qualities in LC to LC connectors, as they minimize signal degradation and improve overall transmission efficiency. Look for connectors with specifications that meet or exceed industry standards for these parameters.

Ferrule and Body Material

The ferrule is the precision-machined ceramic or metal component that holds the end of the fiber and provides a mating surface for the connector. LC to LC connectors commonly use ceramic ferrules for their durability and precision. The body material, on the other hand, can be made of plastic or metal, with each material offering its own set of advantages. Plastic bodies are lightweight and cost-effective, while metal bodies offer better shielding against electromagnetic interference (EMI) and higher temperature resistance.

Connector Polarity and Keying

When connecting two LC to LC fiber connectors, it's important to ensure that they are correctly aligned and mated to avoid cross-talk or signal degradation. To address this, LC connectors employ a unique keying system that ensures the connectors can only be connected in one orientation. Additionally, polarity (also known as transmit and receive) must be carefully considered to ensure that signals flow in the correct direction. LC connectors are designed to be keyed in such a way that incorrect polarity connections are physically impossible.

Compatibility and Interoperability

Compatibility and interoperability are key considerations when selecting LC to LC fiber connectors. Ensure that the connectors you choose are compatible with your existing equipment and infrastructure. Additionally, look for connectors that are interoperable with industry-standard protocols and specifications, such as those set by organizations like the Telecommunications Industry Association (TIA) and the International Electrotechnical Commission (IEC).

Conclusion

Choosing the right LC to LC fiber connector for your application requires careful consideration of various specifications, including core and cladding diameters, insertion loss and return loss, ferrule and body material, connector polarity and keying, as well as compatibility and interoperability. By understanding these specifications and how they relate to your specific needs, you can make an informed selection that ensures efficient and reliable data transmission. This guide to LC to LC fiber connector specifications has been designed to fulfill your precise selection needs, helping you navigate the world of fiber optic connectors with confidence.
