Ensuring Accurate Data Transmission: Quality Control & Performance Testing Strategies for Single-Mode Fiber Optic Jumpers

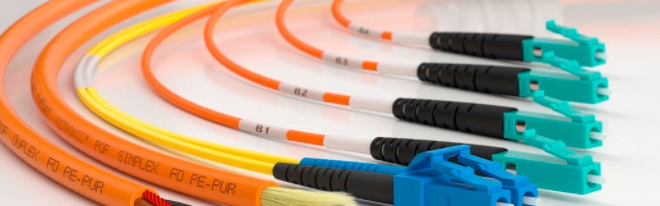

Introduction to Single-Mode Fiber Optic Jumpers

Single-mode fiber optic jumpers utilize a smaller core diameter (typically 9 microns) designed to propagate a single ray of light, allowing for much higher bandwidth and longer transmission distances compared to multi-mode fibers. They are widely employed in fiber-to-the-home (FTTH), data centers, telecommunications networks, and high-end industrial applications that demand high-speed, low-latency connections.

Quality Control Measures

1. Material Selection: The first line of defense in quality control is selecting high-quality materials for the fiber core, cladding, jacket, and connectors. Ensuring compliance with industry standards such as ITU-T G.652 or G.657 for the fiber and IEC 61754 for connectors is essential.

2. Connector Cleanliness & Termination: Connector end faces must be meticulously cleaned to eliminate dust, oils, or other contaminants that can impair signal quality. Proper termination techniques and equipment ensure that the fiber core is precisely aligned within the connector ferrule, minimizing insertion loss and backreflection.

3. Environmental Durability: Testing the jumpers under varying temperature, humidity, and bending conditions verifies their resilience to harsh environments, preventing premature failures.www.adsscable.cn

4. Visual Inspection: Careful visual inspections during and after production identify any defects, such as scratches, dirt, or misalignment, that could compromise performance.

Performance Testing Methods

1. Insertion Loss (IL) Measurement: Insertion loss measures the attenuation of the optical signal as it passes through the jumper. Lower IL values indicate better signal quality. Tests are typically conducted using optical time domain reflectometers (OTDRs) or light sources/power meters at various wavelengths (e.g., 1310 nm and 1550 nm).www.adsscable.cn

2. Return Loss (RL) Evaluation: Return loss assesses the amount of light reflected back into the source due to imperfect connector interfaces. High RL values are desirable as they reduce interference and noise. RL testing can be performed using the same equipment as IL measurement.

3. End-Face Geometry Analysis: Using interferometer-based inspection systems, the shape and cleanliness of connector end faces are analyzed to identify defects that can impact signal transmission. This includes checking for angles, scratches, and other imperfections.www.adsscable.cn

4. Temperature Cycling: Cycling the jumper through extreme temperature ranges simulates real-world environmental changes, helping to identify any issues that may arise due to material expansion or contraction.

5. Bend Radius Testing: Verifying the jumper's ability to withstand tight bends without excessive loss or damage is crucial, especially in cramped environments like data centers.

Conclusion

Ensuring the accurate transmission of data over single-mode fiber optic jumpers necessitates a meticulous approach to quality control and performance testing. By implementing stringent material selection criteria, rigorous connector preparation procedures, and comprehensive testing methodologies, manufacturers and network administrators can confidently deploy fiber optic jumpers that maintain signal integrity and reliability over long distances and varying conditions. In doing so, they contribute to the uninterrupted flow of information that powers our interconnected world.
