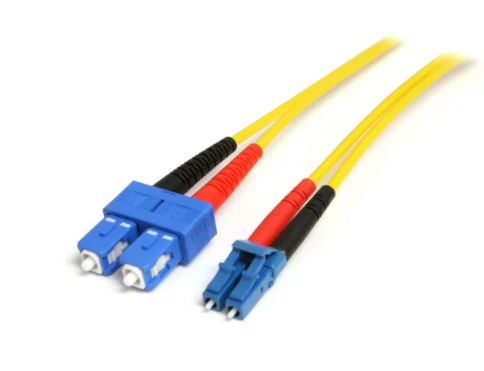

LC to SC Fiber Connector Conversion: A Step-by-Step Guide to Solving Your Connection Challenges
In the world of fiber optics, ensuring seamless and efficient connectivity is crucial for maintaining high-speed data transmission and reliable network performance. One common challenge faced by network administrators, technicians, and DIY enthusiasts alike is converting between different types of fiber connectors, particularly from LC to SC. This article provides a comprehensive, step-by-step guide to converting LC to SC fiber connectors, helping you overcome any connection difficulties you may encounter.
Before diving into the conversion process, it's essential to have a basic understanding of LC and SC fiber connectors.
LC (Lucent Connector): LC connectors are known for their small form factor, making them ideal for high-density fiber optic applications. They feature a push-pull latching mechanism for easy insertion and removal, but their compact size can make them more challenging to handle in tight spaces.
SC (Subscriber Connector): SC connectors, on the other hand, have a standard square housing and a screw-on coupling nut for secure connections. They are widely used in various fiber optic networks due to their durability and ease of use.www.adsscable.cn
There are several reasons why you might need to convert LC to SC fiber connectors:
Compatibility: Upgrading or integrating new equipment that requires SC connectors.
Standardization: Moving towards a more standardized connector type across your network infrastructure.
Performance: In some cases, SC connectors may offer better performance or compatibility with specific fiber types or distances.
LC to SC Converter/Adapter: This is the key component that allows you to convert an LC connector to an SC connector. Ensure you choose a high-quality converter that meets your network's specifications.
Cleaning Supplies: Fiber optic connectors are sensitive to dirt and dust, so having a fiber optic cleaning pen or wipe is essential.
Fiber Optic Cable Stripper (if needed): If you're working with unterminated fiber, you'll need a stripper to remove the outer jacket and buffer tube.
If you're starting with a pre-terminated LC cable, skip to Step 3.
For unterminated fiber, use a fiber optic cable stripper to carefully remove the outer jacket and buffer tube, exposing the bare fiber.
Clean the exposed fiber end with a fiber optic cleaning pen or wipe to remove any dirt or dust.
Carefully inspect the LC connector on your fiber optic cable to ensure it's clean and free of debris.
Insert the LC connector into the appropriate end of the LC to SC converter. Depending on the converter design, this may involve pushing or screwing the connector into place.
Ensure the connection is secure and that the converter's latching mechanism (if present) is engaged.
Before connecting the SC end of the converter to your network equipment, perform a visual inspection to ensure everything is properly aligned and connected.www.adsscable.cn
Use a fiber optic tester or light source to verify that the signal is passing through the converter without any loss or attenuation.
Once you've confirmed the converter is working correctly, connect the SC end of the converter to your network equipment.
Tighten the coupling nut (if present) to secure the connection.
Converting LC to SC fiber connectors can seem daunting, but with the right tools, materials, and a clear understanding of the process, it's a straightforward task. By following the steps outlined in this guide, you can easily overcome any connection challenges and maintain the integrity of your fiber optic network. Remember to always prioritize safety and use caution when handling fiber optic cables and connectors.www.adsscable.cn
