"Fault Self-Resolution: A Comprehensive Guide to Common Issues and Solutions for MTP Fiber Connectors"
MTP (Multi-fiber Push-On) fiber connectors have become a staple in modern data centers and high-density fiber optic networks due to their exceptional density, scalability, and ease of use. However, like any sophisticated technology, MTP connectors can encounter issues that may affect their performance. This guide aims to provide a comprehensive overview of common problems encountered with MTP fiber connectors and their corresponding solutions, empowering users to troubleshoot and resolve issues independently.
Connectivity Issues
Ensure the connector is fully inserted and locked into place.
Perform a thorough cleaning of the connector endfaces using MTP-specific cleaning tools and following a three-stage process: inspect, clean, re-inspect.

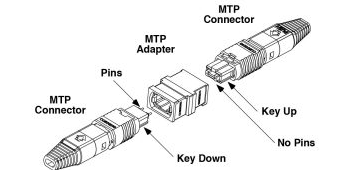

Verify the polarity and pin alignment according to the TIA-568 standard (A, B, or C type).
Incomplete insertion of the connector.
Dirty or damaged connector endfaces.
Incorrect polarity or pin alignment.
Symptoms: Intermittent or complete loss of signal, increased bit error rate (BER).www.adsscable.cn
Causes:
Solutions:
www.adsscable.cn
High Insertion Loss
Replace low-quality connectors and cables with professional-grade MTP products.
Ensure proper handling and installation procedures are followed to minimize damage.
Perform an OTDR (Optical Time Domain Reflectometer) test to identify and locate the source of high insertion loss.
Poor-quality connectors or cables.
Improper handling or installation leading to damage.
Misaligned fibers within the connector.
Symptoms: Reduced signal strength, increased attenuation.
Causes:
Solutions:
Fiber Damage
Avoid excessive bending or physical impact on the fiber cables.
Use strain relief boots and proper cable management techniques to protect fibers.
Replace damaged fibers or cables as necessary.
Physical impact or excessive bending.
Incorrect handling during installation or maintenance.
Symptoms: Broken or frayed fibers, increased attenuation.
Causes:
Solutions:
Polarity Issues
Verify and standardize the polarity configuration across the entire network.
Use color-coding or labeling to easily identify different polarity types.
Perform a polarity audit during network upgrades or changes.
Incorrect polarity configuration during installation.
Mixing of different polarity types within the same network.
Symptoms: Miscommunication between devices, incomplete data transfer.
Causes:
Solutions:
Incompatibility with Existing Infrastructure
Research and purchase adapters or conversion kits to bridge the gap between MTP connectors and existing infrastructure.
Consider upgrading older equipment to support MTP technology.
Incompatibility with older or non-standard equipment.www.adsscable.cn
Lack of adapters or conversion kits.
Symptoms: Difficulty in integrating MTP connectors with existing equipment or cables.
Causes:
Solutions:
Visual Inspection: Check for any visible damage to the connector or cable.
Cleanliness Check: Ensure the connector endfaces are clean and free of dust, dirt, or other contaminants.
Polarity Verification: Confirm the polarity configuration matches the rest of the network.
Signal Testing: Use diagnostic tools such as an OTDR or light source/power meter to test signal strength and attenuation.
Documentation Review: Refer to installation manuals, specifications sheets, and any other relevant documentation for troubleshooting guidance.
By following these troubleshooting steps and solutions, users can effectively address common issues with MTP fiber connectors, maintaining the integrity and performance of their fiber optic networks. Remember, regular maintenance and proper handling practices can help prevent many of these issues from occurring in the first place.
