A Comprehensive Guide to Pre-terminated Fiber Optic Patch Cords: Technical Specifications, Applications, and Buying Tips

2024-06-03 1208

A Comprehensive Guide to Pre-terminated Fiber Optic Patch Cords: Technical Specifications, Applications, and Buying Tips

Technical Specifications of Pre-terminated Fiber Optic Patch Cords

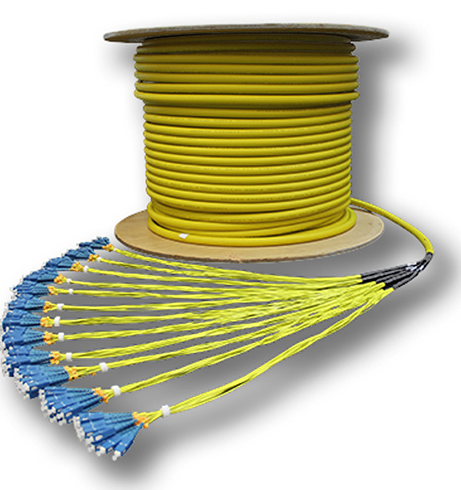

Pre-terminated fiber optic patch cords, also known as pre-connectorized fiber cables, are optical cables that have undergone assembly and testing of fiber connectors and cables at the factory. Their technical specifications primarily cover the following aspects:

  1. Connector Specifications:

    • Connector Type: MPO, LC, SC, etc., selected based on the type of equipment port.

    • Ferrule Diameter: Φ2.499±0.0005mm.

    • Ferrule Core Diameter: Φ0.125+0.001-0mm.

    • Ferrule Length: 16.0±0.3mm.

    • Ferrule Concentricity: ≦1.4um.

    • Ferrule Curvature Radius: 20mm+5-10mm.

  2. Cable Specifications:

    • Cable Outer Diameter: 3mm, smooth surface with no defects.

    • Cable Tensile Strength: ≧200N.

    • Cable Minimum Bending Radius: 30mm.

    • Cable Temperature Characteristics: -40℃-+80℃, with additional attenuation ≦0.2dB/km.

  3. Optical Performance:

    • Operating Wavelength: 1310nm, 1550nm.

    • Fiber Attenuation: ≦0.37dB/km (1310nm), ≦0.25dB/km (1550nm).

    • Fiber Cutoff Wavelength: λC≦1250nm.

  4. Optical Connector Optical Indicators:

    • Insertion Loss: IL≦0.2dB.

    • Return Loss: RL≧50dB.

    • Connection Attenuation: ≦0.5dB (including interchangeability and repeatability).www.adsscable.cn

    • Interchangeable Return Loss: ≧35dB.

    • Plug-in Durability: >1000 cycles while still meeting attenuation requirements.

  5. Operating Environment:

    • Temperature during transportation and storage: -20℃-+60℃.

    • Operating temperature: +5℃-+40℃.

    • Relative humidity: 10%-90% (+35℃) for guaranteed performance.

Applications of Pre-terminated Fiber Optic Patch Cords

Pre-terminated fiber optic patch cords are widely used in scenarios requiring high-density, high-performance, and high-reliability fiber optic connections, such as data centers and telecommunication rooms. Their compact design philosophy allows for savings in space and improved cabling efficiency in high-density cabling environments.

  1. Data Centers: Data centers are the support sites for enterprises' uninterrupted business platform operations, requiring extremely high performance of the cabling system. Pre-terminated fiber optic patch cords, through factory termination and testing, can ensure the stability and reliability of network connections, reducing the risks caused by human operation errors.

    www.adsscable.cn

  2. Telecommunication Rooms: Telecommunication rooms are the core nodes of communication networks, with equally high requirements for fiber optic connection density and performance. The high-density design of pre-terminated fiber optic patch cords can support more fiber optic connections, improving cabling efficiency in telecommunication rooms.

Buying Tips for Pre-terminated Fiber Optic Patch Cords

  1. Choose the Correct Connector Type: Select the appropriate connector type based on the type of equipment port to ensure compatibility.

  2. Select Single-mode or Multimode Fiber: Choose the fiber type based on the transmission distance and bandwidth requirements. Single-mode fiber is suitable for long-distance transmission, while multimode fiber is primarily used for short-distance transmission.

  3. Select the Appropriate Cable Length: Select the appropriate length of fiber optic patch cord based on the distance between connecting devices to avoid waste and unnecessary costs.

  4. Pay Attention to Cable Jacket Types: Select the appropriate cable jacket type based on requirements such as fire resistance and environmental protection, such as PVC, LSZH, or OFNP.

  5. Check Product Certifications and Test Reports: When purchasing, check if the product meets relevant international standards and data center requirements, and view the product's test reports to ensure reliable performance.
